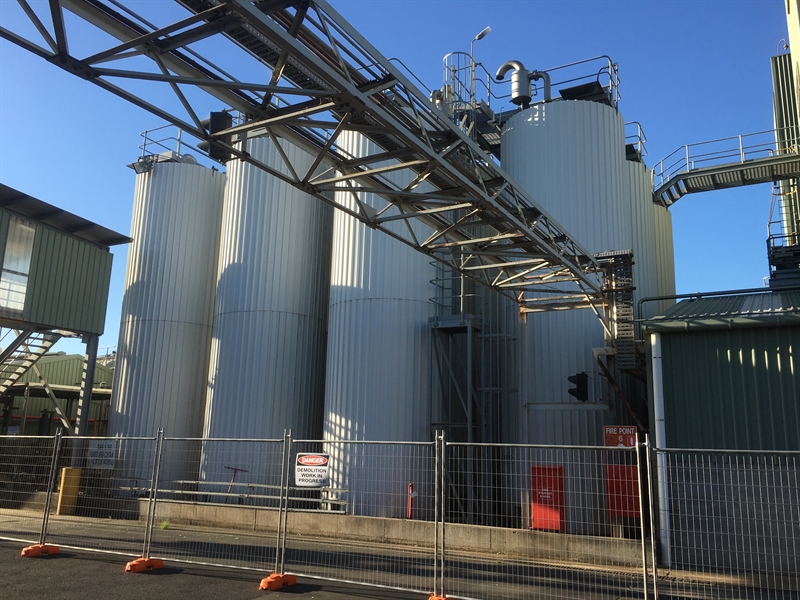

Stainless steel tanks, 70,000L single skin, sloping base.
Tanks internal dimensions are 3.00m dia x 9.8m tall.
Overall Dia is 3.4m
Overall Height is 11m
Tanks are made with 8mm thick 304 stainless steel with a white colourbond steel clading with an air gap between, no insulation.
Tanks are single skin.
Manhole in the top and also in the bottom. Sloping base in tank to a 100mm outlet.
Made by Sava Engineering Geelong
Design Code Spec 2420-SM-05
Year Built is 1995
Design Pressure - Atmospheric
Price is pulled out and loaded onto your trucks.
Each tank weighs approx 5 tonne.
11 Tanks available.
Price per tank Ex Melbourne.
Last used to hold a polymer.
We can also arrange delivery Australia wide, contact us for a freight quote.
