Scraped Surface Heat Exchanger

Product overview

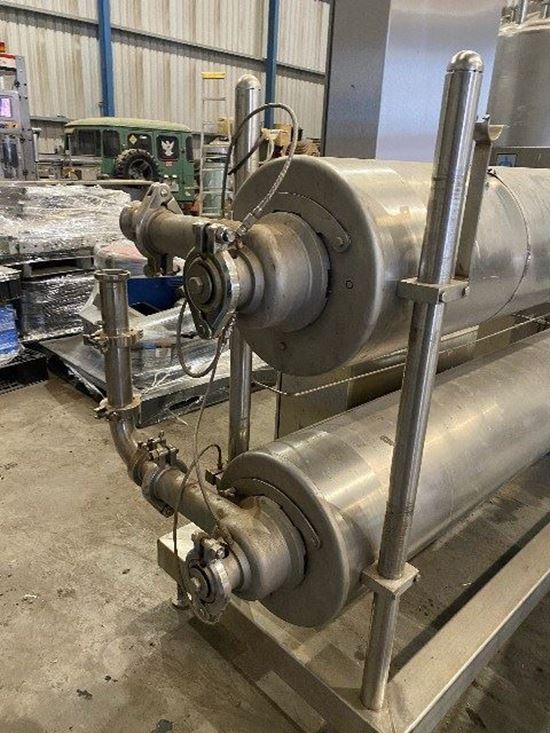

Cherry Burrell Thermutator Scraped Surface Heat Exchanger - Type 672 L&S.

Serial No 1752.

Heat Transfer Surface Area 9.0 sq. ft. per tube.

Max Product Pressure 400 psi. Max temp 400F.

2 x 15hp Motors with Danfoss Variable Speed drives.

2 Spare Rotors.

The Thermutator is used to heat or cool products that cannot be continuously processed by other type of heat exchangers. Products that would be used with this application: heat sensitive, film forming, highly viscous, have a particle size od delicacy that cannot be accomodated by other heat exchangers.
