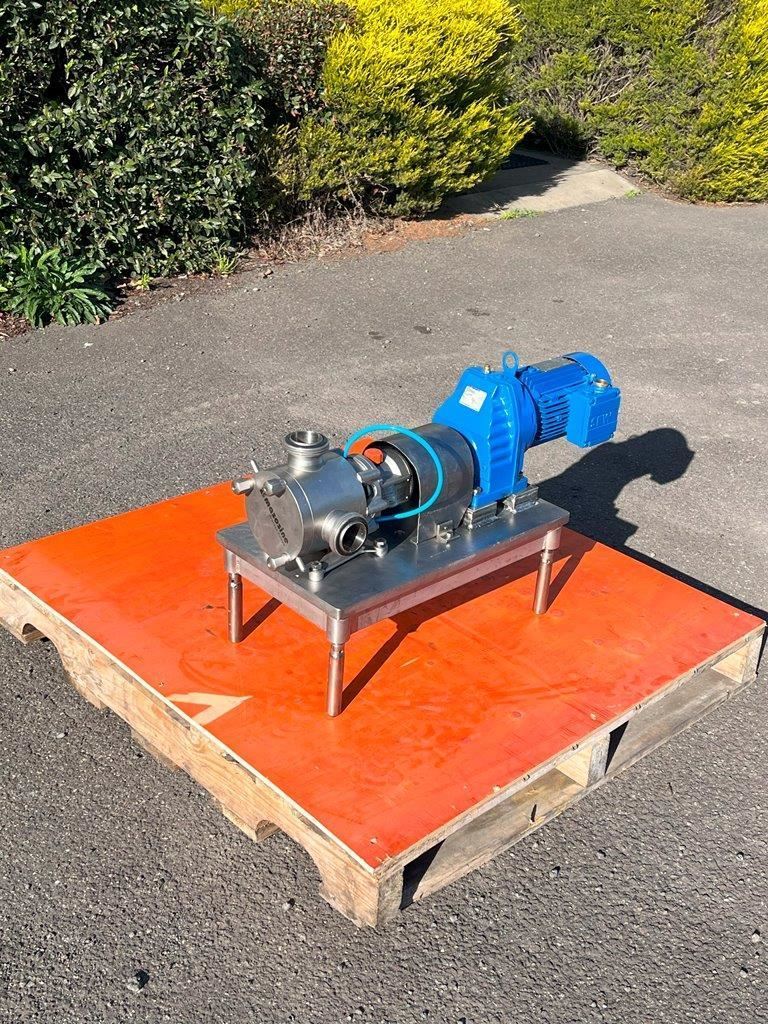

Stainless Steel Masosine Pump (Chocolate Pump)

Product overview

Model: S200 Currently set up for pumping chocolate.

Frame: Stainless Steel Power Frame

Power: 415V 3 Phase 0.75kW geared motor.

RPM: 859RPM

Volume: 5000L/hr

2" Inlet

2" Outlet

Max Temp Rating  180degC

Suction and discharge are reversable.

A sinusoidal pump, also known as a sinusoidal positive displacement pump or sinusoidal rotor pump, is a type of positive displacement pump that operates using a sinusoidal motion to generate flow. It is designed to handle viscous and shear-sensitive fluids, making it suitable for various applications in industries such as food and beverage, pharmaceuticals, cosmetics, and biotechnology.

The sinusoidal motion of the rotor and stator ensures gentle and smooth fluid handling, minimizing shear forces and maintaining the integrity of the pumped material. This makes it ideal for products such as creams, gels and other shear-sensitive fluids.

Sinusoidal pumps offer advantages such as accurate and consistent flow rates, high volumetric efficiency, self-priming capability, low pulsation, and low shear forces. They can handle both thin and highly viscous fluids and are often used in processes where precise control of flow and gentle handling of the product are critical.
