Inline Centrifugal Pump

Model
TP 80-210/2
Stock Code
22059
Manufacturer
GRUNDFOS
Category
Centrifugal Pumps
Inlet
3
M³/hr
63.8
Outlet
3
RPM
2920
Head
17.1
HP
5.5

Product overview

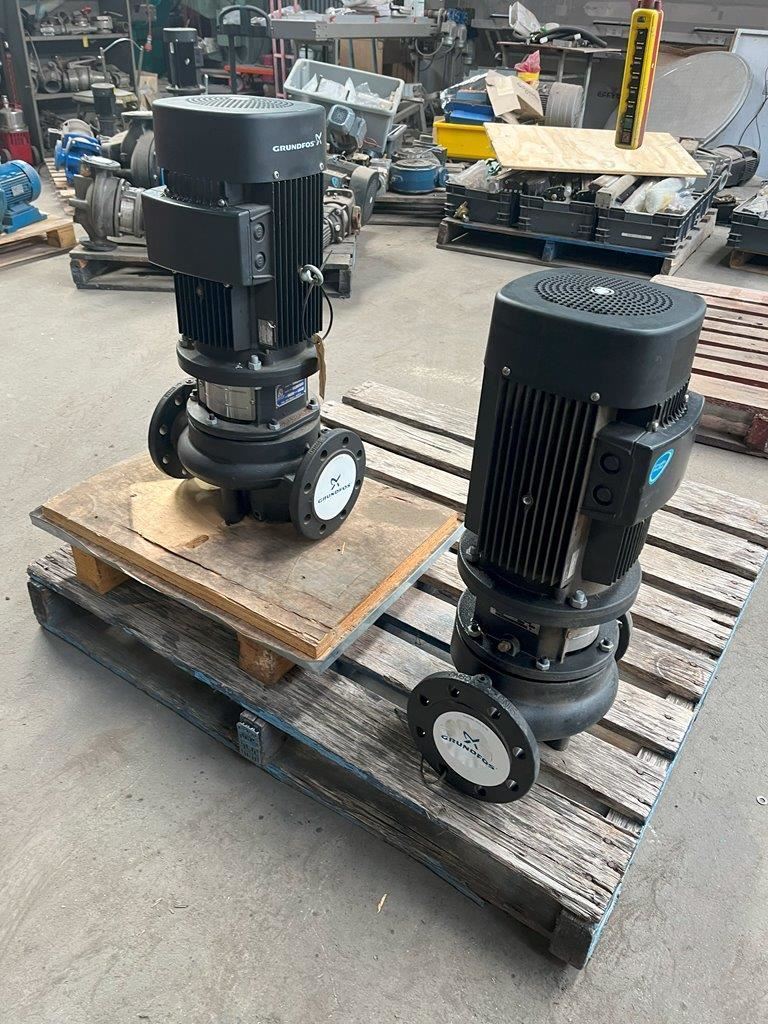

Brand new GRUNDFOS inline single stage centrifugal pump.

2 Pumps available.

Price per pump.

3 Phase, 415V, 4 kW motor.

RPM: 2920.

Volume: 63.8 cubic metres/Hr.

Head: 17.1 metres.

p/t: 16/90 bar/C max.

Bronze Impeller.

Grundfos TP pumps are single-stage, close-coupled in-line centrifugal pumps with mechanical shaft seal and primely for applications such as heating/cooling/district energy. The pumps are fitted with fixed speed motors.

The pump is of the top-pull-out design, i.e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework. The pump is fitted with a fan-cooled asynchronous motor.
