Sieve Bend

Product overview

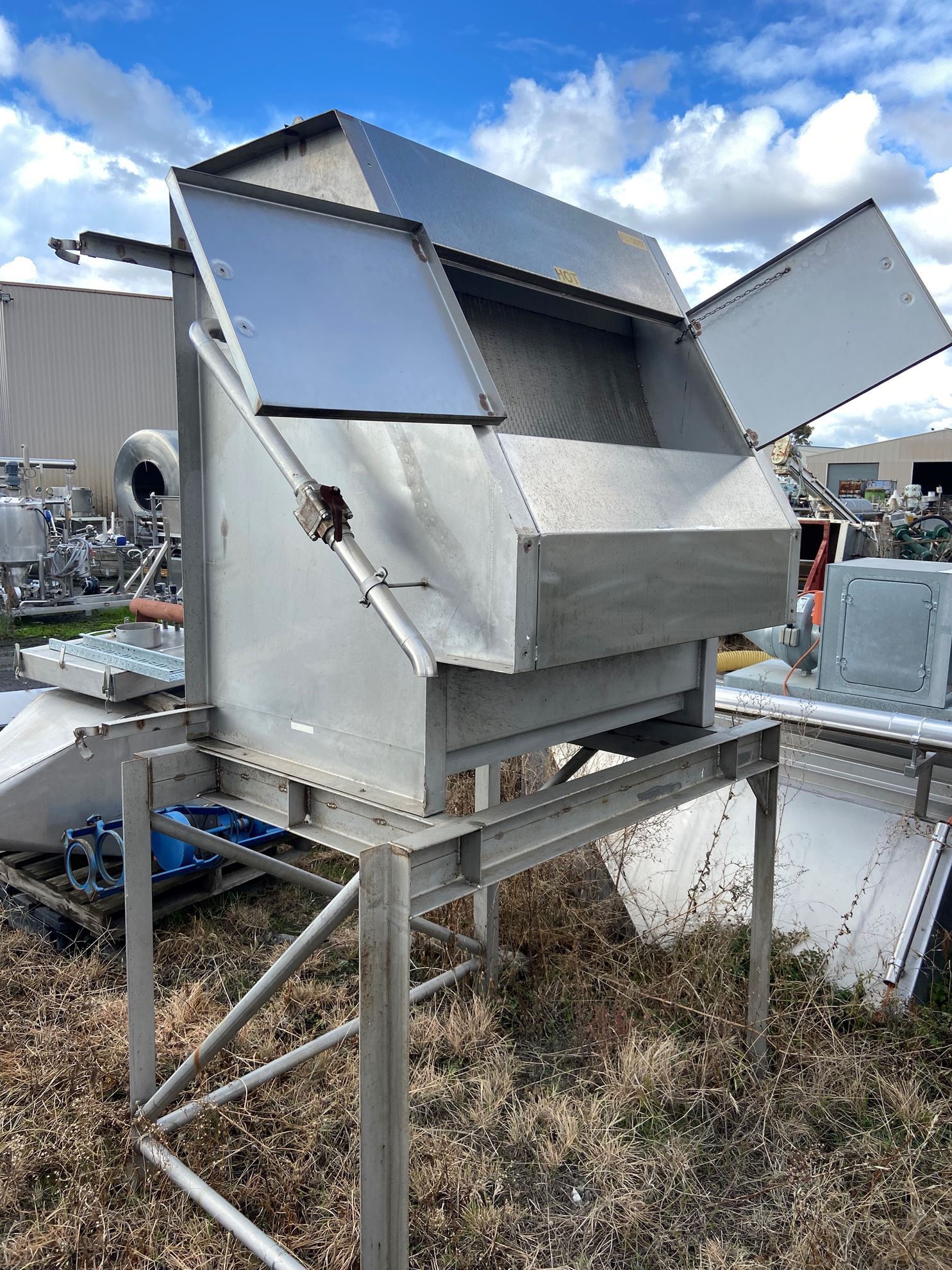

Stainless steel sieve bend.  1.2mt wide x 1000 mm long screen area. 1.5 mm slots in screen.

3 inch outlet. Slurry is pumped into the top well, then the slurry cascades over the wedgewire sieve with the liquid going through the screen while the solids slide down the screen face into the collection hopper.

Approx flow rate of 1400 Lt Per minute

Overall dims are: 1.9m x 1.2m x 2.9m high

Ex Food plant.
