Hammer Mill

Model
1800/8
Stock Code
21131
Manufacturer
JC Smale
Category
Hammer Mill
KW
55

Product overview

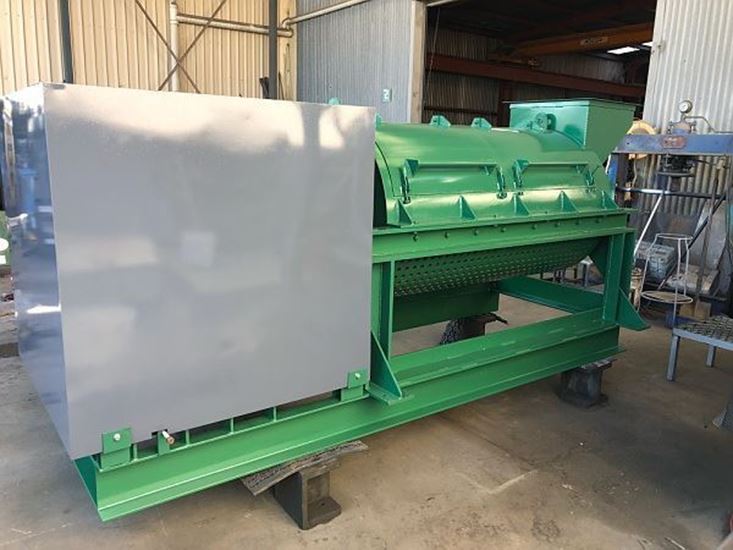

Hammer Mill heavy duty (swing hammers)
Made by JC Smale Melbourne.
Drive 55kw 6 pole 415/3/50hz Electric Motor with 110kw NHP soft starter.
V belt drive from motor to Mill, mill fitted with heavy fly wheel.
Mill rotor running at 600rpm.
Mill 800mm dia x 1.8 long with heavy duty screen 16mm thick with 25mm dia holes.

Feed chute is 600mm wide

Also side take off for excess Air.

Product is fed into the top at the opposite end to the drive and comes out through the screen.
