Tronics Labeller

Model
3F
Stock Code
21345
Manufacturer
TRONICS
Category
Label Applicator

Product overview

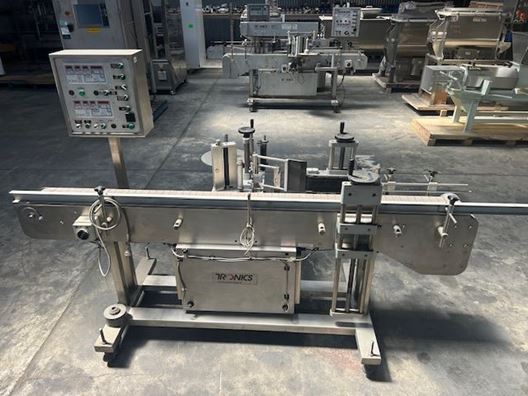

Tronics - Dual head labeller, fitted with overhead conveyor and wrap around. Labeller has the ability to label two sides at once. Fitted with a scroll infeed. Last used for Jars and bottles but could be set up for most applications.

Can be seen in operation.

LABEL SPECIFICATIONS:

Dispensing speed
Maximum 30m/min
Minimum 5m/min
Label reel core size 76mm inside diameter
Label reel outside diameter 335 maximum
Label size vertical 15mm – 215mm
Label size horizontal 20mm – 999mm
Label gap size minimum 2.5mm
Label stop accuracy +/- 0.5mm (on dispensing edge)
Right and left labelling heads
MECHANICAL ADJUSTMENTS
Height adjustment side 870mm – 1185mm
Height adjustment overhead 900mm – 1050mm
Horizontal adjustment 0mm – 150mm
Tilt adjustment +/- 8 degrees
