St/Steel Cyclone

Product overview

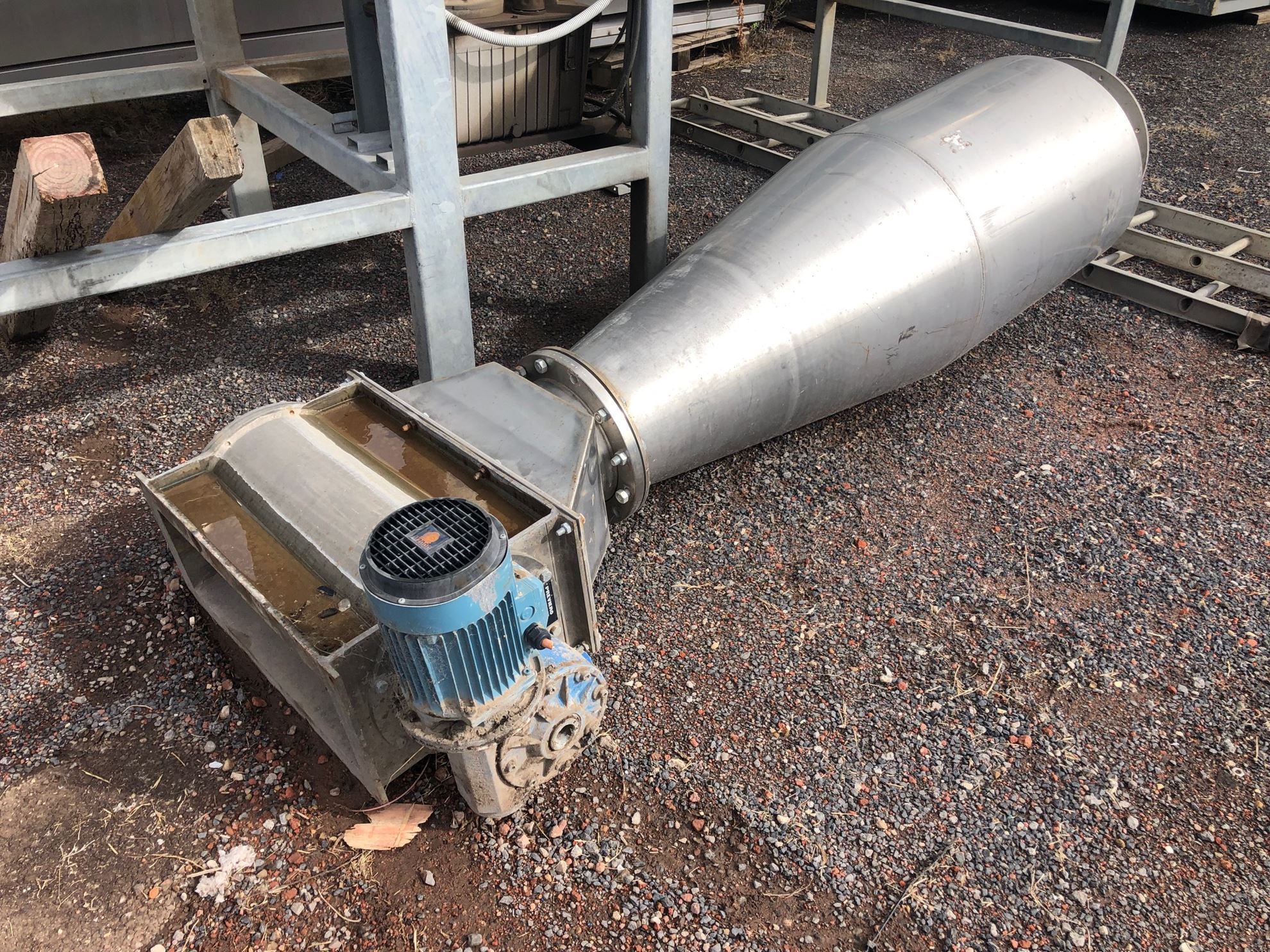

Stainless Steel Cyclone with rotary valve discharge.

The cyclone is 650mm dia x 1800mm tall (overall height with rotary valve is 2.6m)

The dirty air inlet is 250mm x 100mm (there is 100mm pipe currently fitted to the flange)

The clean air outlet out the top is 400mm dia

The bottom of the cyclone is a 280mm flange onto a mild steel rotary valve.

The rotary valve is a Previero, 1.1kw, 415.
