RAW MATERIAL HANDLING

Model

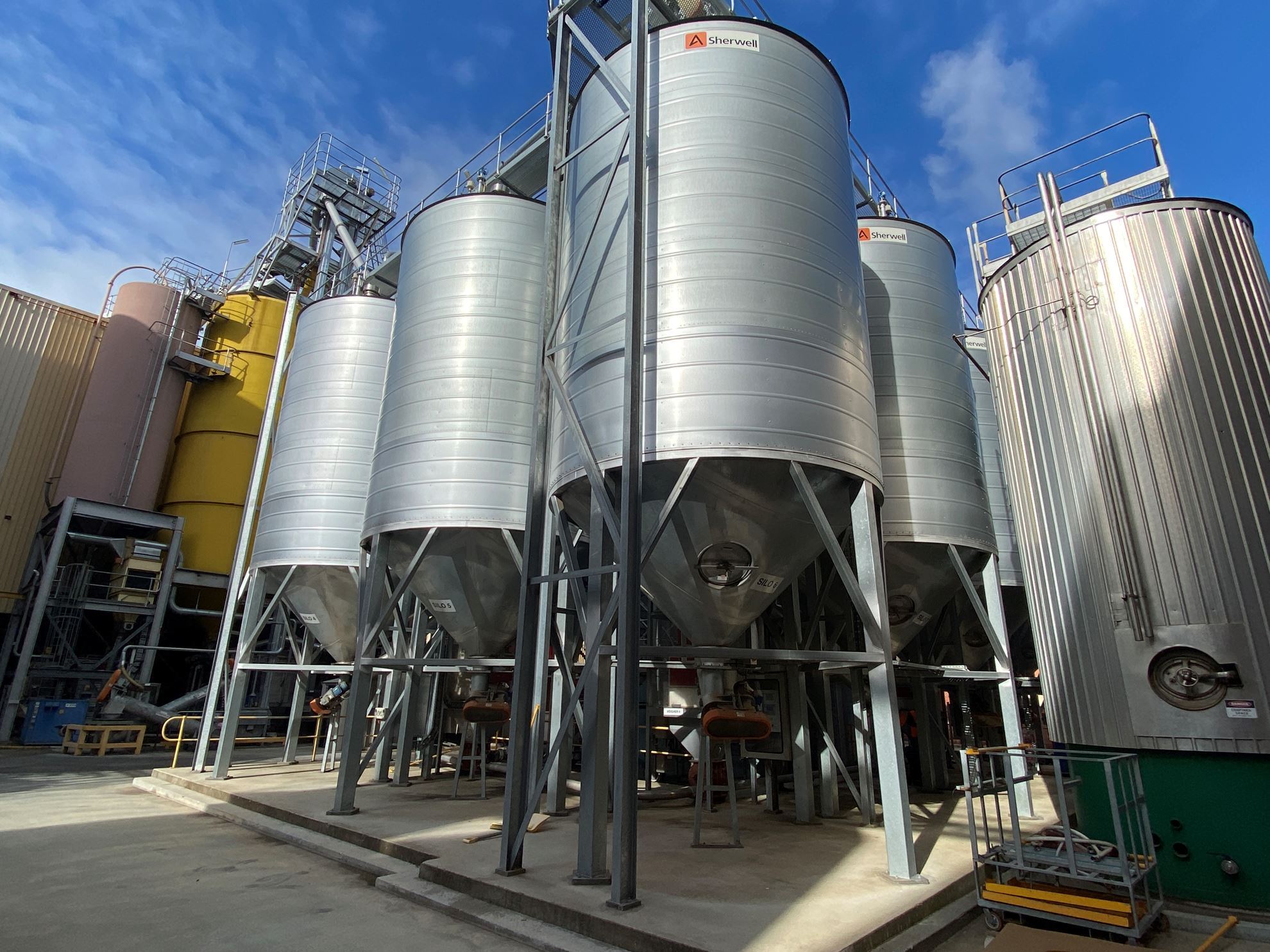

Grain storage silos
Stock Code
21430
Category
Tanks, Silos and Hoppers

Product overview

Consists of the following items:

  • 3 x 150 ton Pale Malt Silos (Yellow Silos)
  • 5 x 2015 Ahrens Sherwell 89 Ton Special Malt Silos (Malt Silos 4, 5, 6, 7, 8, 9); max load/each: 89Ton, Cubic Capacity/each: 103m³, galvanised steel frames, motorised augers,
  • Roast Malt Silo (Silo 10 - cream colour) with intake screw conveyor, hopper bin and 2015 WAM polygonal dust collector, type: FPX1DT12VA3728 (Silo 10)
  • Stainless Steel Spent Grain Silo, approx. 100Ton capacity, drive under with butterfly discharge valve
  • 5 x 2015 Imeco CSG100E Weighers (Weighers 1, 2, 3, 4, 5), 10-100Kg capacity (each) with controllers, S/N: 57321, 5728, 5729, 5730, 5731
  • Malt Unloading/Intake Conveyor, with Eriez magnet & vertical conveyor system (conveyor 101/102)
  • Sugar Dosing System comprising; 2 x dosing tanks, 2 x mono dosing pumps, Hanovia UV filtration system, process valves with control heads
  • 2 x Stainless Steel recovered water tanks (SS Tanks with green base)
  • Donaldson Dust Extraction System, with hopper/bin, auger & Moduflex S300 Loader Chute (DB01/DB02)
  • PDA NX5 Blower, Serial No: S1750-15
  • PDA NX8 Blower, Serial No: 51750-15;
  • Various Control Cabinets & VSDs

Excellent condition silos, all still in use and regularly maintained and checked. Last used to store malt. All interconnecting pipework and valving available.
