Spiral Conveyor

Model
Spiralveyor SV
Stock Code
21072
Manufacturer
AMBAFLEX
Category
Floveyor
Length
20
Width
400

Product overview

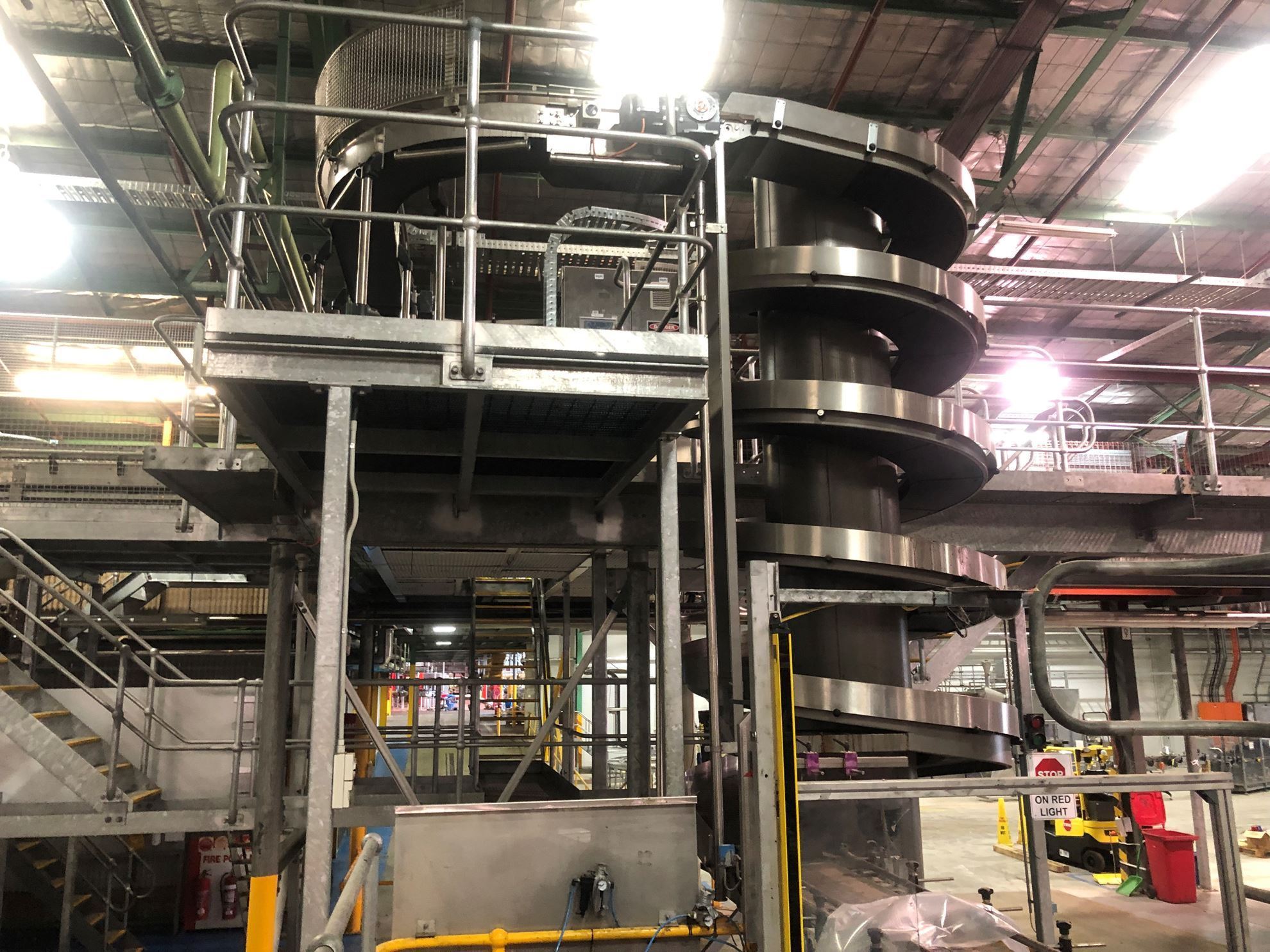

Ambaflex Spiral conveyors 8 in total. Last used to convey finished goods (bottles in cartons) down from the upper level to feed onto Palletiser. Approx width 400mm. Approx length of belt 15mt. Located at Coca Cola SA.

SV Series is a general purpose spiral conveyor that is applied in many industries and across a wide range of applications. Within the AmbaFlex SpiralVeyor® program, these are the midrange in belt width. They can be fitted with one or more parallel individual driven conveyor tracks arranged parallel to each other. The SlimLine version is designed to save valuable floor space and defends the title of World's most compact spiral elevator.

Suitable for goods:
  • Cartons, containers, trays, bottlepacks, bags, crates and totes.
Details
Belt width range 300 - 600 mm / 12 - 24"
Multi Track up to 4 parallel tracks
Load range up to 50kg/m - 33 lb/ft
Speed range standard up to 60m/min - 200 fpm
Elevation virtually unlimited / commonly up to 15 m per drive system. / 50 ft
Conveyor belt length up to 60 m per drive system / 200 ft

Price per conveyor.
