Continuous S/S Mixer

Model
SS Mixer 3.3
Stock Code
20859
Manufacturer
AJAX
Category
Inline Continious Mixer
Length
3.3
Width
0.420

Product overview

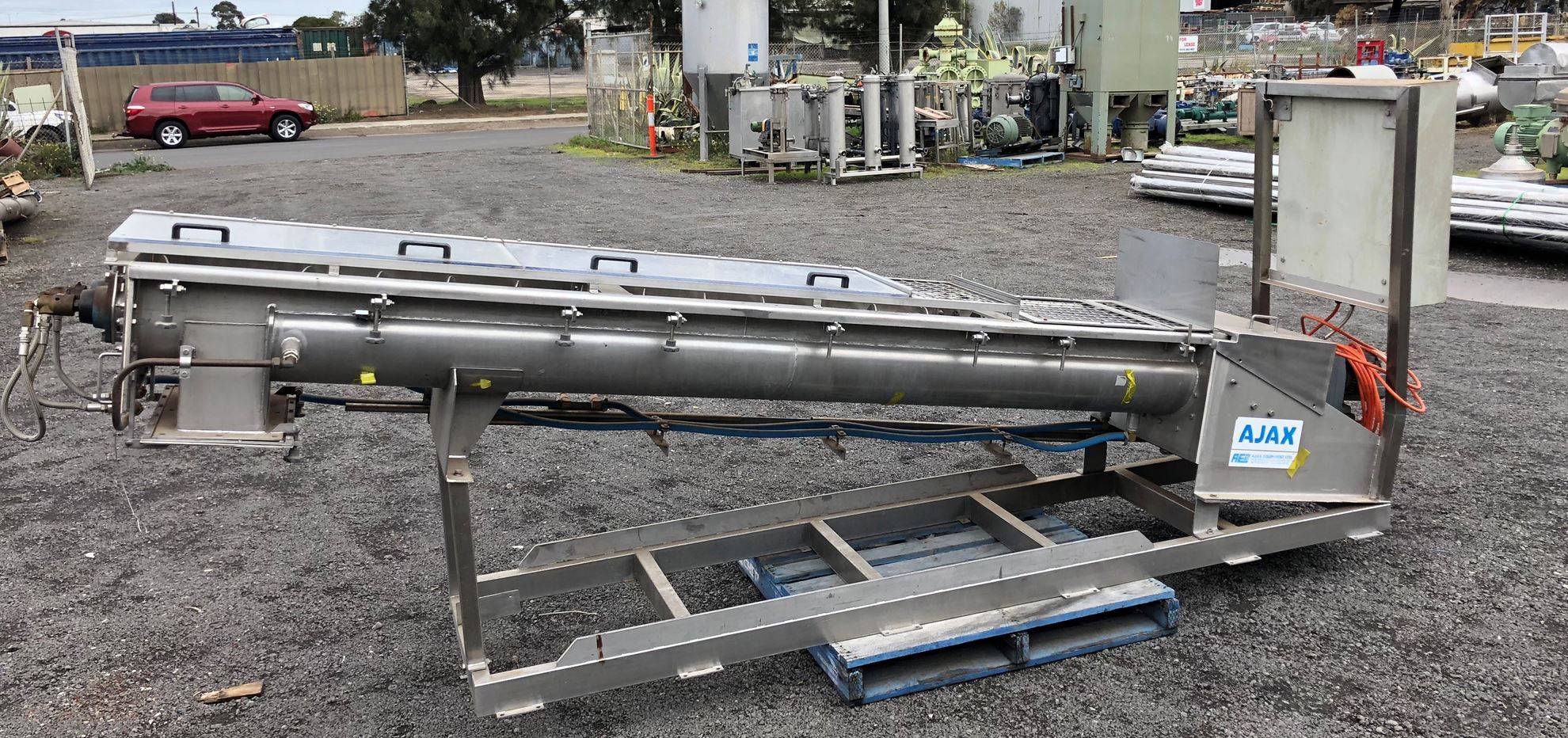

Stainless steel continuous mixer.

3.3mt long x 430mm wide.

The mixer is jacketed for heating or cooling. Opearting pressure is 2 bar and test pressure is 3 bar.

400mm x 200 mm outlet

800mm discharge height.

Stainless steel mesh covers and perspex lids.

Complete with drive which is a 1.1kw 11.5 rpm geared drive.

No electrical controls in board. Requires VSD and some contactors.

Made in England.

Ex food plant



AJAX mixers produce a high quality mix because of the efficient multiple and progressive actions of ribbons. Homogeneity is quickly achieved and the reduced work input means low energy requirements. Particle attrition and damage to sensitive products are also minimised. Product transfer is concurrent with the mixing process so segregation and quality issues associated with intermediate storage and separate, sequential operations can be avoided.

Reduced handling and mix quality are built in, so the rejection of large quantities and inconsistencies that can arise from batch manufacture are prevented. Easy cleaning with the ability to both clean-in-place and quickly change over the mixing augers means that downtime is reduced and cross contamination avoided. AJAX ribbon flights gently mix and positively combine solids and liquids that differ in flow properties, size, density, or other tendency that might provoke segregation to deliver the correctly proportioned ingredient mix.
