Stainless steel mixing tank

Product overview

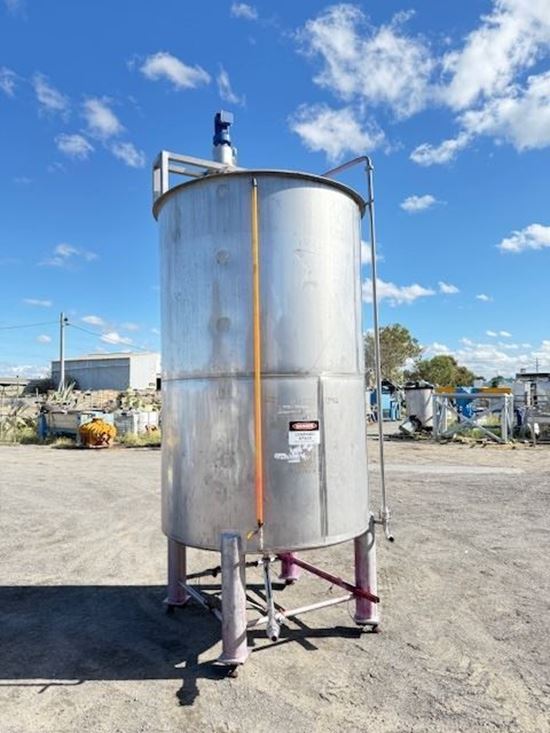

Stainless steel 10,000lt mixing tank, last used to mix vegetable-based marker dye.

Tanks details

• Man whole on top of tank
• 2" inlet in top of tank and 2"outlet at the bottom
• slight conical bottom tank
• Teralba agitator with 2hp motor
• load cells fitted to tank with digital read out
• 316 L Stainless steel material
• internal baffles
• visual level indicator running down the side of tank

Tanks Dimensions

• 4m tall from ground to top of agitator
• 1.8m diameter
• straight side is 2.7m
• weight 1.2ton

Two tanks available - Price per tank.
