Glass Beer Bottling lines

Model
Beer Bottling
Stock Code
21427
Manufacturers
Foodmach , KHS , KRONES
Category
Soft Drink Machinery

Product overview

Capacity 45,000bph

Depalletisers;

  •        2003 (upgraded 2016) Foodmach Bulk Glass Depalletiser, Series 2000, with pallet conveyor, S/N: 399/1186
  •        2000 (upgraded 2016) Foodmach Bulk Glass Depalletiser, Series 2000, with pallet conveyor, S/N: 380/1186

Paramix System, comprising;

  •        2002 KHS M15 INNOPRO CMX20 Paramix, S/N: J69136K941
  •        2002 Entgaser-Kombination Dearator, S/N: 87510
  •        2002 Karbonisiertank, 850L, S/N: J69136K,
  •        SPX N35 RKS-10 Heat Exchanger, motorized pump, actuator, S/N: 2012 043,

Bottling Line 1, comprising;

  •        1989 HSRC 33 Sturton Gill Rinser
  •        1991 Krones 129VKV 110/22 KK 103 LM Bottle Filler & Crowner, S/N: K-129-421
  •        100 x filling heads, 22 x crowner legs
  •        45,000 x 375ml ring neck bottles per hour
  •        24,000 x 750ml bottles per hour
  •        39,000 x 345ml bottler per hour
  •        2001 Krones 4322/720 Capper, S/N: 56558
  •
  •        7 x 2014 Krones 848-150 Label Magazines
  •        2014 Krones Checkmat 731 Label Inspector, S/N: K731Y28
  •        2002 Krones Sanderson Hansen Shield Pasteuriser, type PB15.6-558-12, 2 tier, S/N: 702, with Krones IP PLC

Bottling Line 2, comprising;

  •        1990 HSRC 33 Sturton Gill Rinser
  •        1990 Krones 129VKV 110/22 KK 103 LM Bottle Filler & Crowner, S/N: K-129-420
  •        100 x filling heads, 22 x crowner legs
  •        45,000 x 375ml ring neck bottles per hour
  •        24,000 x 750ml bottles per hour
  •        39,000 x 345ml bottler per hour
  •        Spectrum Heuft Automatic Inspection System
  •        2014 Krones Multimodul Labeller, S/N: K408266
  •        7 x 2014 Krones 848-150 Label Magazines
  •        2014 Krones Checkmat 731 Label Inspector, S/N: K731V51
  •        Krones Sanderson Hansen Shield Pasteuriser, 2 tier, with Krones IP PLC

Packaging Equipment;

  •        2015 KHS Innopack Kisters SP AH Film Wrapper, type SP A-H, with heat tunnel and 3 Videojet 1710 coders, S/N: K-89405489-000100
  •        2004 Mead Westvaco EvoTech CPD-22 Cluster Packer, S/N: 103
  •        1998 Mead Westvaco BW250 Cluster Packer, S/N: 010
  •        1996 Kisters 300/70 Wrap Around Packer, S/N: 961844 with Allen Bradley Panel View 6000 PLC
  •        2004 Kisters WP070V Wrap Around Packer, S/N: 002480, with Allen Bradley Panelview 1000 PLC

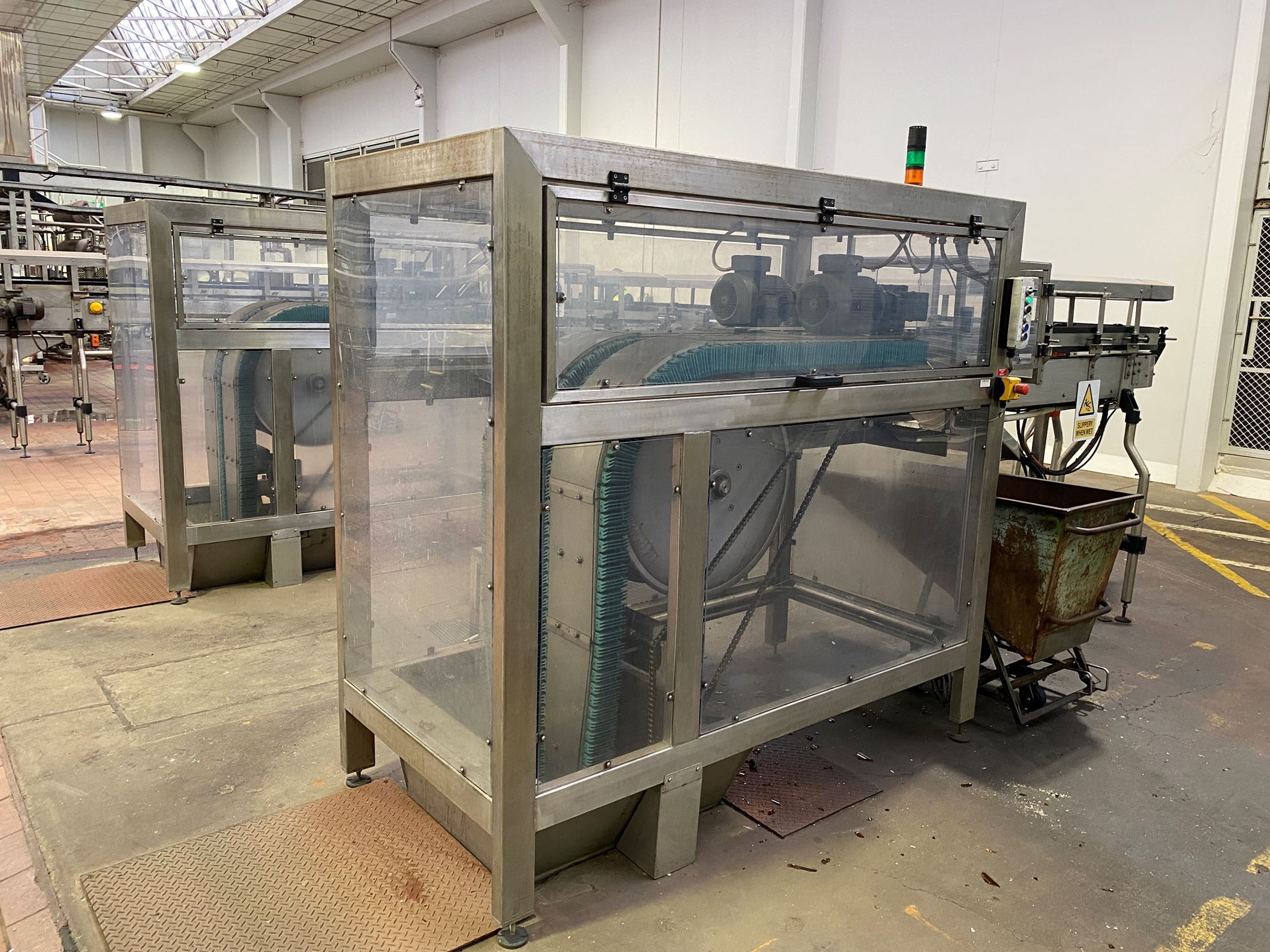

  •        2 x 2018 AmbaFlex Spiralveyor SV, S/N: 262340/02

KHS Twin Line Palletiser, comprising;

  •        2 x Conveyor Feed Line
  •        Pallet Feed Line
  •        2 x Kuka KR CA Robot
  •        2 x KHS Innopal PB Palletiser
  •        Outfeed Conveyors
  •        4 x Markem-Imaje Labellers
  •        Associated Electrical Control Cabinets & Safety Fencing

Bottling Line CIP, comprising;

  •        RO Permeate Water Tank, stainless steel, 150hl, (TK20-9400)
  •        Hot Water Tank, stainless Steel, 85hl (TK21)
  •        Hot Caustic Tank, stainless steel, 85hl
  •        2 x APV Heat Exchanger, with assorted pumps, actuators, valves & pipes
  •        Wine Cooler Tank (TK04)
  •        Packing Effluent Tank, stainless steel, approx. 50,000L
  •        2 x 5 Ski motorised pumps

Ancillary Equipment, comprising;

  •        Glass Crusher x 2 (North & South), Schenck Vibrators, housed in Fabricated Steel Framework
  •        Regeneration Vessel (Tank 2), jacketed stainless steel, Yokogawa Ph/ORP Transmitter
  •        Hydra Pac Bailing Machine, model: PB28

·       2018 Hydra Pac Bailing Machine, model: PB28A, S/N: 2705

  •        2018 Hydra Pac Bailing Machine, model: PB28A, S/N: 2706
  •        6 x Water Reclamation Tanks, mild steel (08-5100 TK, 08-5200 TK, 08-5300 TK, 08-5400 TK, 08-5500 TK, 08-5600 TK)

Price per line.
