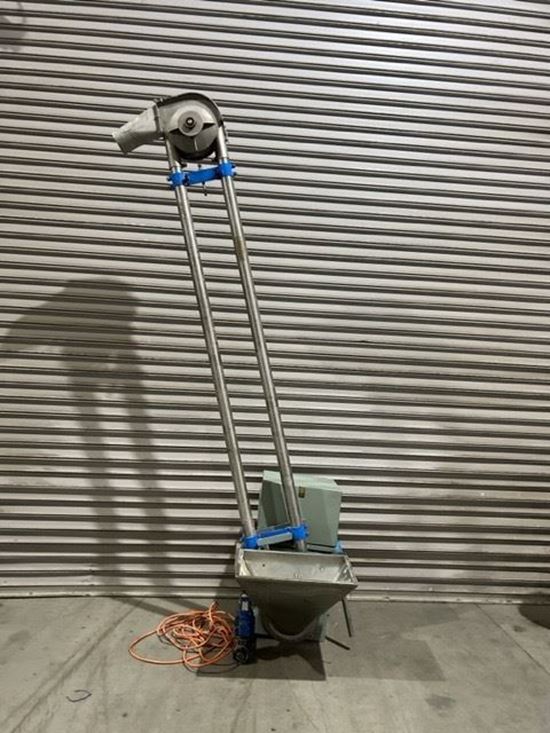

St/Steel Floveyor

Product overview

The floveyor is designed to convey dry powders and granules. The floveyor is a tubular conveyor in which all the moving parts operate within the material being conveyed. These parts are essentially the rope assembly, which consists of plastic discs that are fixed at equal intervals and two terminal sprockets of a specially designed shape.These plastic discs are what convey the product through the tubes.

The floveyor can move a variety of products ranging from Grains, Cement, Dry sand, Flour and Sugar at variable flowrates ranging from 6 tonne per hour for flour through to 22 tonne per hour dry sand.

3 mt discharge height 75mm dia tubes. Overall height is 3.5m

Stainless steel tubes and loading hopper.
