Product overview

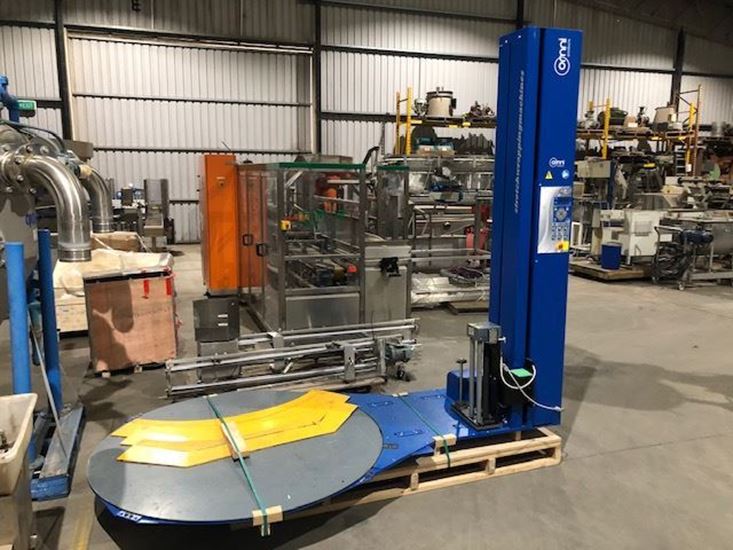

This pallet wrapper is in very good condition.
This wrapper has the new innovative low profile design turntable which enables easy access to the turntable, and ensures a small footprint as ramps are not required.
This wrapper has the Power pre stretch system which saves on plastic film.
Specs:
Height |
2466mm |
Width |
1600mm |
Length |
2380mm |
Turntable Height |
18mm |
Machine Weight |
500kg |
Power Supply |
240 Volt |
Power Absorption |
1kW |
Weight Capacity |
1500kg |
Wrapper Features
- Frequency controller for carriage speed adjustment
- Frequency controller for turntable speed adjustment
- Loading plate ø 1650 mm
- Maximum height of pallet: 2466 mm
- Maximum size of the pallet: 1200 x 1200 mm
- Maximum loading weight: 1500 kg
- Electromagnetic brake for the stretching of the film
- Photocell for pallet height detection
- Safety stop at the base of the carriage
- Stop at 0 position
- Power board IP54
- 3 password levels (including lock password)
- Stop at 0 position
- Power board IP54
- 3 password levels (including lock password)
- Adjustable parameters by the control panel without password: cycle selection, bottom laps, top laps, topsheet cycle
- Parameters, rotation speed, carriage ascent speed, carriage descent speed, film tension, starting wrapping height
- 6 working cycles: ascent/descent; topsheet; only ascent; only descent; layers; stack
- Storage of 32 end user programs
- 3 working ways: semi manual, semiautomatic, fixed height
- Strengthening operation
- Acoustic warning at the cycle start and stop
- Braked turntable at the end of the cycle
- Receiver for infrared/radio remote control
- Auto diagnostic
- Wrapped pallet counter
- Powder coating
