Sorry - this product is no longer available

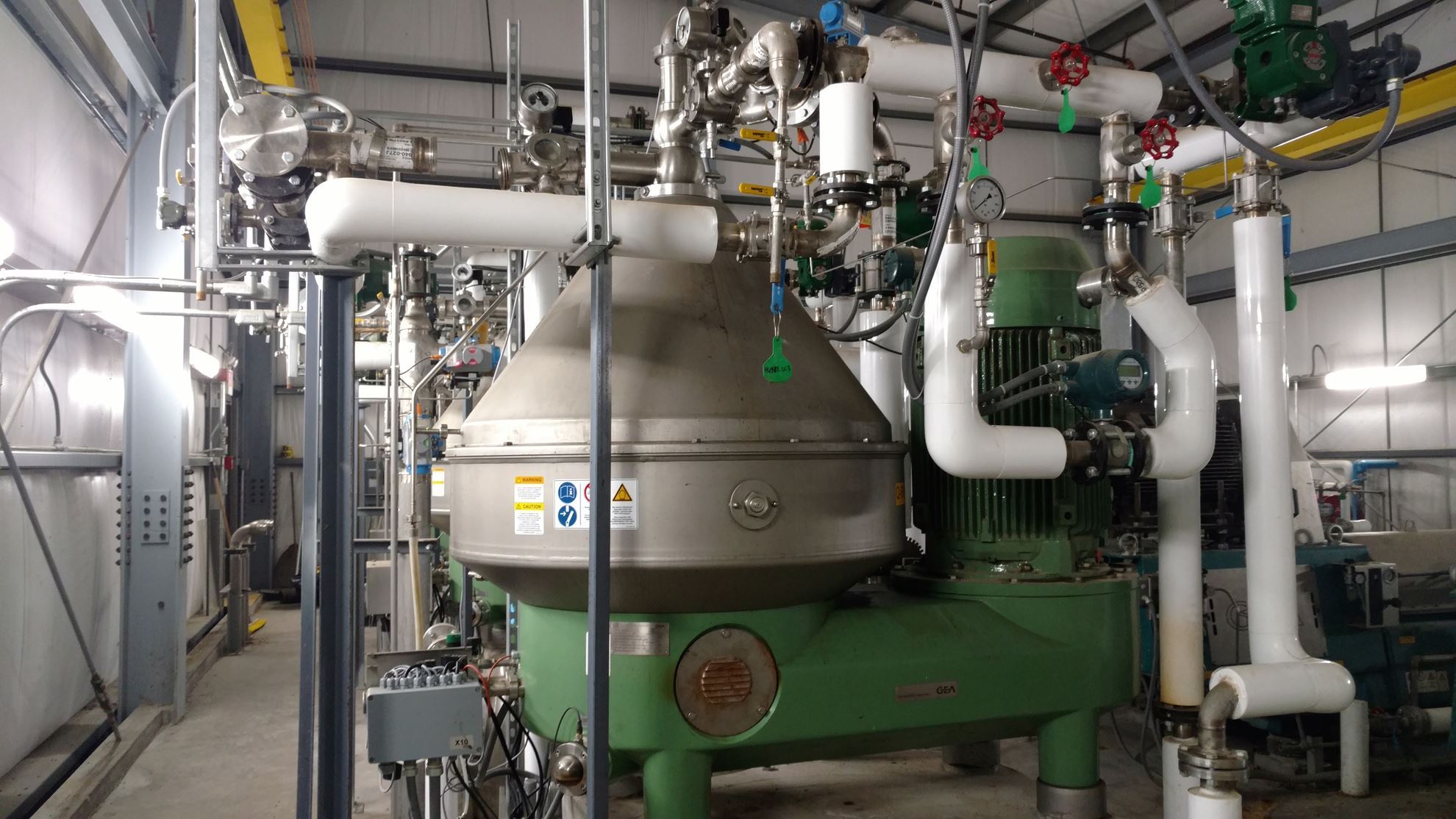

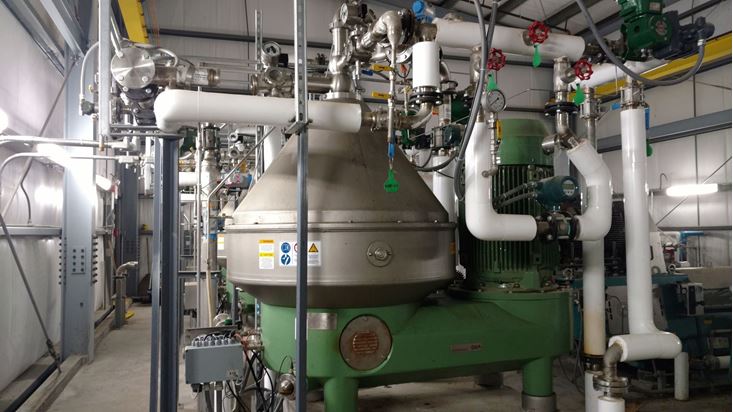

Westfalia RSE 300 Separators

Model
RSE 300 01 777
Stock Code
20865
Manufacturers
GEA , WESTFALIA
Category
Disc Centrifuges

Product overview

This separator has been designed for use in the edible oil industry. The product
is fed into the bowl through a closed-line system with hydrohermetic feed. The light liquid phase (clean oil) is discharged foam-free under pressure by a centripe- tal pump.

Quantity 2 units available

Model: RSE 300-01-777

Manufactured in 2014

  •          Three phase separator design
  •          Centripetal pump discharge of both the light phase and the heavy phase (dual pump design)
  •          Inner rising disc stack
  •          Sliding piston equipped with nozzle discharge (blanks and nozzles available)
  • Complete machine available with tools and VFD startes and HMI panels.
  •  nitrogen blanketing

Capacity

Water Degumming - 1200 t/d

Acid Degumming - 1000 t.d

neutralization - 1200 t/d

Washing - 1200 t/d

Winterization - 500 t/d

cold refining 500 t/d

Miscella refining 720 t/d

BOWL

Speed - Max 4800 Min-1

Volume - 70 lt

Volume of solids holding space - 23 lt

MOTOR

55 KW
