Kliklok SFR Cartoner

Product overview

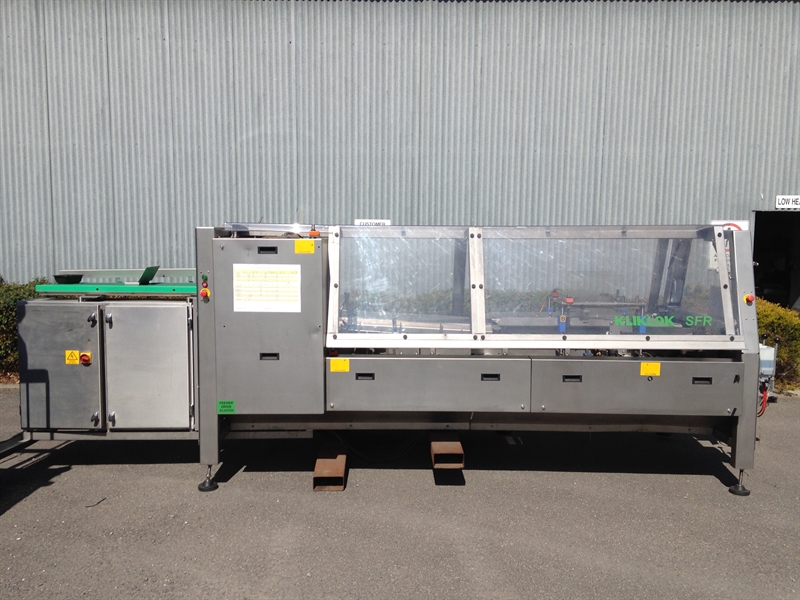

Kliklok SFR Endload cartoner, currently set up with a carton size of 137 x 63 x 189 and last doing seafood packets into a carton. The unit has only had 2 years of production before the equipment was removed as product was stopped.

Complete with spares, SFR Manual and out feed and in feed conveyor.

One of the main features of Kliklok-Woodman's SFR (Small Footprint Rotary) endload cartoner is its compact design, a great advantage for customers with limited floor space. The machine's modular design concept allows the ability to accept a variety of in feed options. In addition to stainless steel construction and high floor clearance, its inner sloping plates help deflect any product or carton waste from the working parts of the machine, making the SFR very easy to clean.

The SFR's efficient footprint is nearly 25% shorter and narrower than competitive systems. With rated production speeds up to 135 CPM, the SFR offers high productivity in a minimum amount of floor space.

Speed
Variable from 30 to 135 CPM
Actual speed depends upon pitch, product characteristics, and carton size and style.

	Minimum	Maximum
Length	2" (50mm)	10.25" (260mm)
Width	1" (25mm)	3.94" (100mm)
Depth	4.31" (110mm)	13.19" (335mm)

Utilities

Electrical

460 VAC +/-5%, 3Ø with ground (PE), 50/60 Hz standard

230 VAC +/-5%, 3Ø with earth ground (PE), 50/60 Hz available

380-420 VAC, 3Ø wye with neutral and ground (PE), 50/60 Hz available

Normal Power Consumption: 28 kVA

Service Required: 40 amps @ 460 VAC

Air Consumption

18 CFM (520 liters/min) @ 90 PSI (6.2 bar)

Optional Features

• Easy size change facility
• Opposite hand version
• Centralized lubrication systems
• Alternative closing means
• Open flap detect/reject system
• Portability kit with casters
• Barrel-cam product inserter with flighted infeed conveyor
• Narrow-profile inserter with open-flight conveyor
• Narrow-profile inserter with SmartBelt infeed

System Layout
