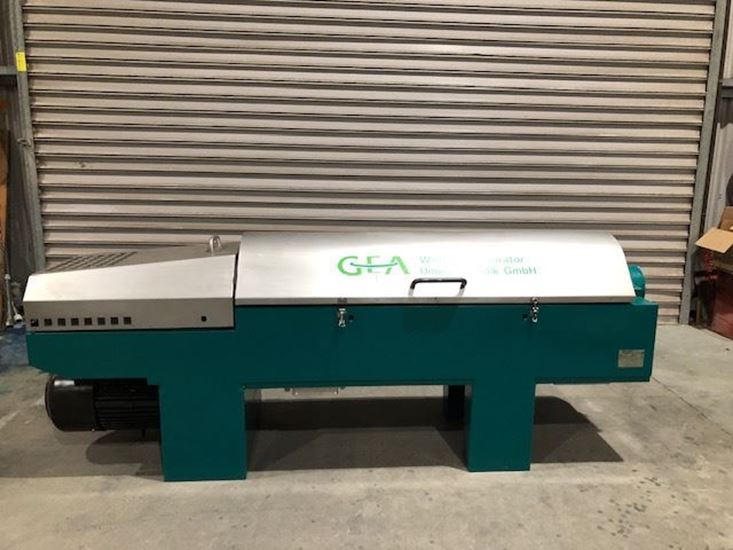

Westfalia GEA Decanter Centrifuge

Model
UCD 305 00 02
Stock Code
21017
Manufacturers
GEA , WESTFALIA
Category
Decanter

Product overview

The decanter UCD 305 from GEA is a continuously operating horizontal solid-wall centrifuge for dewatering requirements of industrial and municipal waste water sludge. The frame is of open design with gravity discharge of the clarified phase.

Features

  • All parts coming into contact with the product are made of CrNiMo stainless steel

  • 3-phase AC motor for controlled torque starting in a star-delta circuit or via frequency converter

• Lowest power consumption of < 1 kW/m3

• Highest g-force for higher solids output

• Adjustable bowl speed via VFD (option) • Automatic adjustment of differential speed via VFD

• In-line secondary motor
• Belts for main drive motor only

Advantages

• Easy installation
• Easy operation and maintenance

• Low space requirement (easy retrofitting)



Bowl Diameter - 300 mm
L / D ratio (angle) - 4.0

Speed - max. 4500 rpm

g-force (z) - Max 3400 g

Comparative capacity - 20,000 l/h

Main Motor - 15kw

Speed at 50 Hz / 60 Hz - 3000rpm / 3600rpm

Scroll motor - 2.2kw

Decanter weight - 1800 kg



Note* Recently Overhauled
